SystemRoMedic™ Lifting – Eva400

Strong, safe and easy to manoeuvre

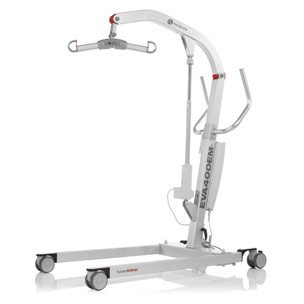

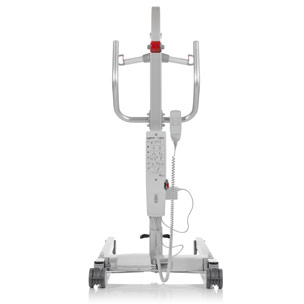

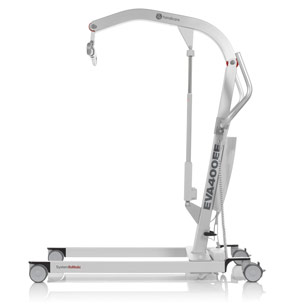

Eva400 is a versatile mobile patient lift for all lifting situations and for users weighing up to 180 kg/400 lbs.

Together with SystemRoMedic’s functional and easy-to-use accessories, Eva400 is the right choice for lifting in connection with transfers to and from the floor, chair or bed, as well as for horizontal lifting and gait training.

  • Aluminium, for low weight
  • Mast adjustable to three height positions
  • Adjustable handle

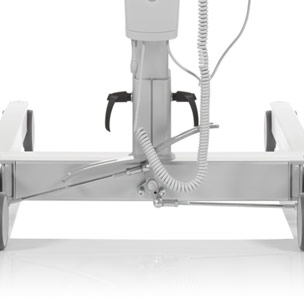

  • Electrical or manual base-width adjustment
  • Maintenance-free castors
  • Electrical emergency stop
  • Electrical and manual emergency lowering
  • Battery with long service life
  • Low voltage to lift unit (24V)
  • Many accessories

Eva400 is available in two versions; with electrical (EE) or manual (EM) base-width adjustment. Both versions of Eva400 are delivered complete and ready to use, equipped with a stable sling bar with reliable safety latches and a hand control. The sling bar is standard width (450 mm/17″) which is suitable for most users and lifting situations. Eva400 can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range.

AmbulationArm is an accessory which can be employed as armrests by the user during gait training but they can also be used by the carer for manoeuvring the lift.

Technical information
Safe working load: 180 kg / 400 lbs
Lifting height min – max: 530-1790 mm (20,9-70,5”)
Outer dimensions base: 685-980 mm (27-38,6”)
Inner dimensions base: 585-880 mm (23-34,6”)
Lifting speed without load: 2,3 cm/s (0,9”/s)
Emergency lowering: Manual and electrical
Castors: Ø 100 mm (Ø 3,9”)
Battery capacity: 2.9 Ah
Material: Aluminium
Protection class: IPX4
Sling bar (width): 450 mm (17,7”)
Weight (with battery): 34 kg / 74,9 lbs
Item NoProductDescription
01-60100001Eva400EEEva400 EE with electrical base-width adjustment. Eva400EE is delivered complete and ready to use, equipped with a stable sling bar with reliable safety latches and a hand control. The sling bar is standard width (450 mm/17") which is suitable for most users and lifting situations. Eva400 can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range.
01-60100011Eva400EMEva400 EM with manual base-width adjustment. Eva400EM is delivered complete and ready to use, equipped with a stable sling bar with reliable safety latches and a hand control. The sling bar is standard width (450 mm/17") which is suitable for most users and lifting situations. Eva400 can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range.
Accessories
Item NoProductDescription
01-80100010 AmbulationArmAmbulationArm is an accessory for all models and versions of Eva mobile lifts.

AmbulationArm can be employed as armrests by the user during gait training but they can also be used by the carer for manoeuvring the lift.
123456718101213CE
