SystemRoMedic™ Lifting – MultiLift550

MultiLift550 is a unique, motor assisted mobile patient lift for all lifting situations and especially useful for heavier users weighing up to 250 kg/550 lbs.

When used with SystemRoMedic’s functional and easy-to-use lifting slings, MultiLift550 is the right choice for safe and easy lifting of users in connection with transfers to and from the floor, chair, bed or toilet and from one room to another. MultiLift550 is also an excellent solution for horizontal lifting and gait training.

Powered moving and turning
MultiLift550 is a truly ergonomic, mobile lifting device requiring no physical exertion from the caregiver. MultiLift550 features powered moving in all directions and at adjustable speed. The large rear drive wheels and the very small turning radius make MultiLift550 very easy to manoeuvre and turn in most spaces and on all types of surfaces including softer floors and carpets. The lift can also easily drive over door thresholds, electric cords and other small obstacles on the floor.

Driving forward, backwards and sideways
Using the buttons on the control panel, the rear wheels can be turned into three different angles so that MulftiLift550 moves in different directions. With the rear wheels in the normal position, the lift drives forwards or backwards. Withe the rear wheels turned to 90 degrees, MultiLift550 can drive sideways for optimal manoeuvrability and easier positioning, for example by a bed, chair or toilet. And with the rear wheels positioned at an angle of 45 degrees, the lift turns around within its own length.

Intuitive driving and manoeuvring

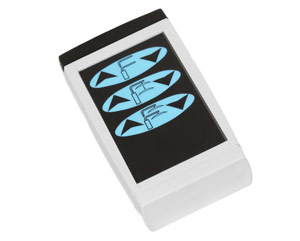

MultiLift550 is easily operated via an intuitive and height-adjustable control system consisting of steering handles, a control panel with a display and an infrared remote control. Driving forward, backwards and sideways, is done by gently pressing the steering handles in the desired direction of movement. By pressing the steering handle forwards and to the side at the same time, the lift will move forward and turn.
MultiLift550 moves the way you want it to.

  • Powered moving, turning and base widening

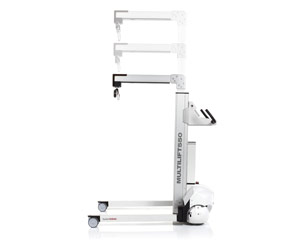

  • Unique lifting solution; straight lifting in two different ways provides a very large lifting range as well as safety, convenience and functionality
  • Intuitive driving and manoeuvring, on all types of floors and over small obstacles on the floor
  • Truly ergonomic; pervents work load injuries and accidents
  • A single caregiver can safely and easily manage both complex and heavy transfer procedures
  • Many safety features
  • Reliable and service friendly

For more information about MultiLift550, please read the product leaflet available on the top right hand side of this page.

Supplied complete and ready to use
MultiLift550 is supplied complete and ready to use, equipped with a wider sling bar (60 cm / 23.6″), providing a more open lifting sling which is ideal for larger users.

SlingBarSpreader M side bars can also be used as an accessory to open up the lifting sling and provide for a more reclined position.

Technical information
Safe working load: 250 kg / 550 lbs
Material, frame: Aluminium / ABS plastic
Height, min-max: 149.9-217 cm / 59-85.4”
Length, totally: 126 cm / 50”
Width, totally: 70 cm / 27”
Height of legs: 11.7 cm / 4.6″
Base width (inside measurement): 53.6-134.6 cm / 21.1-53”
Weight, with battery: 98 kg / 215 lbs
Effective lifting height: 0-192.8 cm / 0-75.9”
Lifting speed, strap: 3.2-4.7 cm / 1.26-1.85” per sec
Driving speed: Max 2.3 km / 1.4 miles per hour
Emergency lowering: Manual and electrical
Base widening: Electrical
Castor/wheel size: Front: Ø 10 cm / Ø 3.93”, Rear: Ø 21 cm / Ø 8.35″
Battery pack: 24 volt 15 Ah LiFePO4
Battery (remote): Lithium Button Cell, CR2450, 3V 550 mAh
Number of lifts: 200 lifts with full load
Driving distance: 10 km / 6.2 miles with full load
Protection class: IPX4
Noise level: 60 dB(A)
Sling bar, material: Aluminium
Sling bar, width: 60 cm / 23.6”
Item NoProductDescription
01-1011000110MultiLift550MultiLift550, complete with remote control, sling bar and charger


Accessories
Item NoProductDescription
01-70200044SlingBar(M)SlingBar M, 45 cm / 17.7", for MultiLift550
01-70200043SlingBar (S)SlingBar S, 35 cm / 13.8", for MultiLift550
01-70200042SlingBarSpreaderSlingBarSpreader M, side bars, 1 pair
1245671810121314CE
