SystemRoMedic™ Lifting – Vega505EE

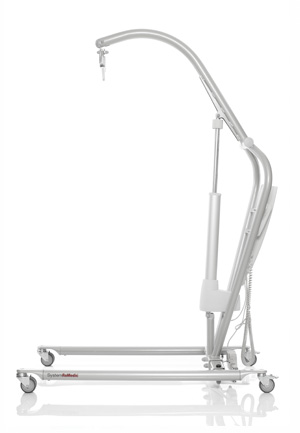

Vega505EE is a mobile patient lift adapted for safe and easy lifting of users weighing up to 230 kg/505 lbs.

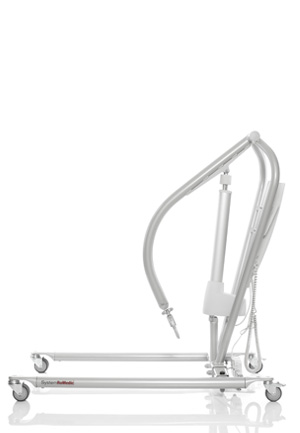

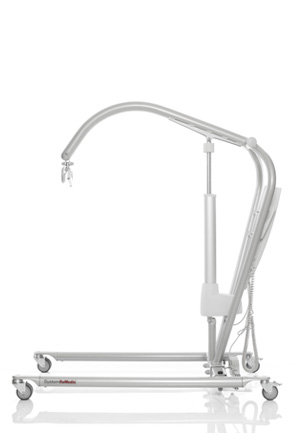

Vega505EE has a new, unique design with a lift arm that can be both raised to an almost upright position and lowered all the way down to the floor. It is also relatively narrow and compact, with dimensions adapted for use in situations and premises where space is limited.

In spite of the handy size, Vega505EE offers an unusually high lifting height and the total lifting range is also extremely large.

Quite simply, Vega505EE offers a unique combination of functionality, performance and quality in relation to price.

Unique design with many advantages:

  • Stable and secure, still comparatively light-weight
  • For users of up to 230 kg/505 lbs
  • Unusually high lifting height and extremely large lifting range
  • Excellent for both very low and very high lifting and gait training
  • Unique design with intuitive handles integrated in the mast
  • New design providing more space and improved comfort for user and carer
  • Ergonomic and easy-to-use for the carer, prevents work-related injuries
  • Batteries with high capacity provide a reliable power supply
  • Convenient size, fits in and reaches practically anywhere
  • Manual and electrical emergency lowering
  • Emergency stop on the control box
  • Low voltage (24 V) to the lift
  • Electrical base widening
  • Many accessories

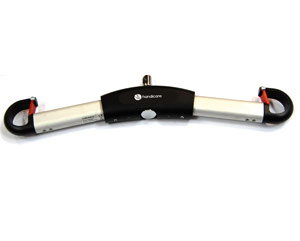

Vega505EE is delivered complete and ready to use, equipped with a stable steel sling bar with reliable safety latches and a hand control. The sling bar is standard width (450 mm/17″) which is suitable for most users and lifting situations.

To get more room in a two-point sling bar, SideBar side bars can be used as an accessory. They open up the lifting sling and provide for a more reclined position.

Vega505EE can also be equipped with many other clever and functional accessories from the SystemRoMedic™ Lifting range.

Technical information
Safe working load: 230 kg / 505 lbs
Material: Powder-coated steel
Height, min-max: 1224-1985 mm / 48,18-78,14”
Base length, totally: 1187 mm / 46,73”
Outer dimensions, base: 680-1240 mm / 26,77-48,8”
Inner dimensions, base: 540-1141 mm / 21,25-44,9”
Weight, with batteries: 42,8 kg / 92,6 lbs
Lifting height, min-max: 316-1810 mm / 12,45-71,25”
Lifting speed, without load: 3,7 cm / 1,5 ” per sec
Emergency lowering: Manual and electrical
Base widening: Electrical

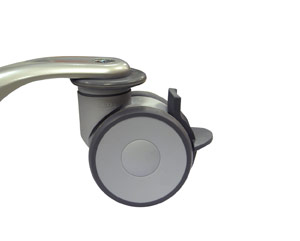

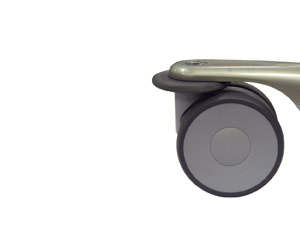

Castor size: Ø 75 mm / Ø 2,9”
Battery capacity: 2,9 Ah
Protection class: IPX4
Sling bar, material: Powder-coated steel
Sling bar, width: 450 mm / 17,7”
Item NoProductDescription
01-60600002Vega505EEVega505EE is a mobile patient lift adapted for safe and easy lifting of users weighing up to 230 kg/505 lbs.
Accessories
Item NoProductDescription
01-70200013SideBar, 1 pairTo get more room in a two-point sling bar, SideBar side bars can be used as an accessory. The side bars open up the lifting sling and provide for a more reclined position.

SideBar is delivered in pairs.
